DEK SMT Stencil Roll Under Screen Cleaning Fabric , 11m LengthDEK SMT Stencil Roll Under Screen Cleaning Fabric , 11m LengthDEK SMT Stencil Roll Under Screen Cleaning Fabric , 11m Length

DEK SMT Stencil Roll Under Screen Cleaning Fabric , 11m Length

  • Name: YCtek
  • Material: Wood Pulp+Polyester
  • Color: White
  • Weight: 56gsm
  • Size: OEM
  • Pattern: Plain
  • Style: Roll
  • Certification:ISO9001,SGS,ROHS

DEK SMT Stencil Roll Under Screen Cleaning Fabric , 11m Length

The SMT stencil wipes are designed for used in SMT (surface mount technology) screen printing lines. They are designed to keep stencil apertures clean of paste residues during the automatic screen printing process.They also clean the bottom of stencil to keep them free from paste and flux between prints.



Feature:

1. High absorbent and exceptional low lint levels

2. Remove the excess paste, adhesive and solvents that can ruin any PCB boards

3. High strength, even in wet

4. Cut down-time and keep screen printers effectively and efficiently

5. Roll can be custom made to suit your exact requirement

6. Lint free for screen/stencil cleaning


SMT Stencil Roll Under Screen Cleaning Fabric for DEK

 DEK Rolls
   Part#
 Core Length  Core ID  Roll OD  Paper Width  Feet Per Roll
 4201DK  21.25"  .75"  2.5"  21.25" (540mm)  36' (11M)
 4202DK  20.87"  .75"  2.25"  20.12" (511mm)  36' (11M)
 4202DK-W  20.87"  .75"  2.25"  20.12" (511mm)  36' (11M)
 4202DK-45  20.87"  .75"  2.25"  20.12" (511mm)  45' (14M)
 4202DK-12  20.87"  .75"  2.25"  12" (300mm)  36' (11M)
 4202DK-14  20.87"  .75"  2.25"  14" (350mm)  36' (11M)
 4202DK-16  20.87"  .75"  2.25"  16" (400mm)  36' (11M)


OEM Stencil Wipes Roll guide:

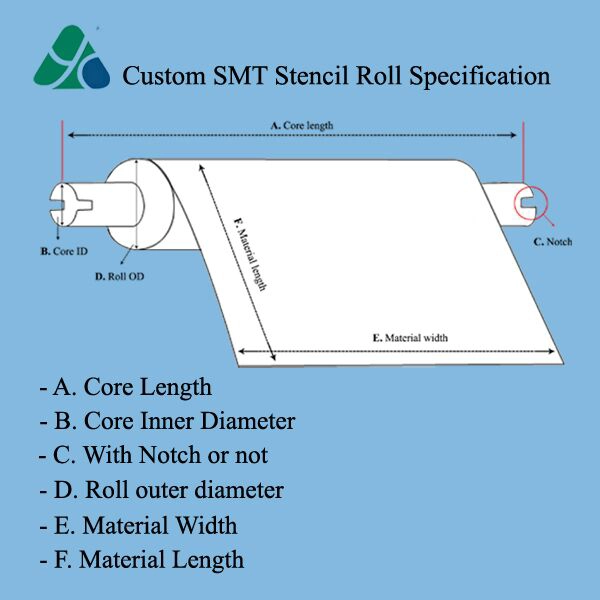

SMT Roll Specification

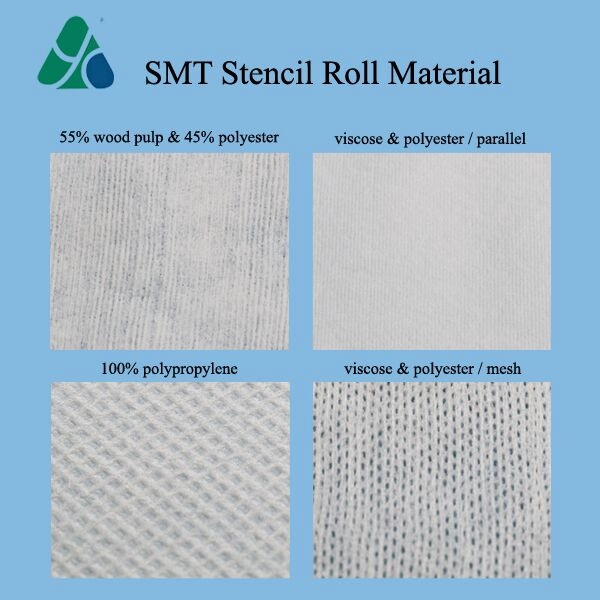

Choose Raw Material


Choose Core type
